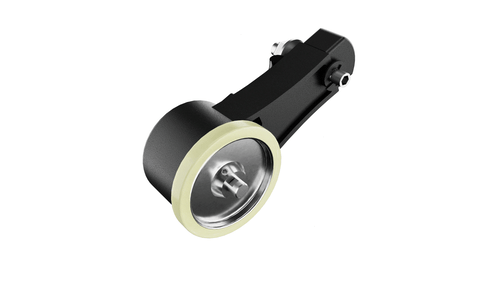

TRP Tru-TracPro™

All-in-one programmable encoder, measuring wheel & spring-loaded torsion arm
1 - 100,000 CPR

Speak to a Live Expert in Under 1 Minute

Custom Engineered Solutions

Fast Shipping & Lead Times

The TRP Tru-TracPro™ programmable incremental encoder is a versatile option for tracking velocity, position, or distance over a wide variety of surfaces at speeds of 3,000 feet per minute. With resolutions from 1-100,000 CPR, the TRP can be programmed and re-programmed, if needed, to exact system requirements. It can also be easily restored in the field to factory settings, allowing the user the flexibility and control they require from their system.

Its durable construction ensures reliable performance even in harsh environments, making it ideal for automation, packaging, printing, vision systems, material handling, and more.

All-in-One
Field Programmable Encoder

Program & Re-Program Your Encoder to the Exact Resolution You Need

Download TRP Datasheet

TRP Tru-TracPro™ Features

Resolutions from 1-100,000 *

Easily restore to factory settings and re-program to exact system requirements

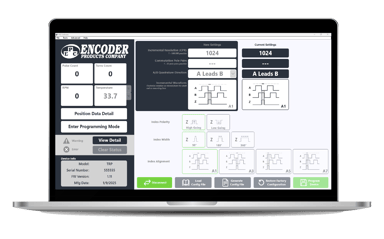

Get up and running quick with easy to download programmer software **

Easily installed in a vertical, horizontal or upside down orientation

Operates over a variety of surfaces at speeds up to 3,000 feet per minute

Provides the ability to choose exact CPR without changing the wheel size

Fast installation for mounting on any surface

Reduce cost and inventory for a more simplified system design

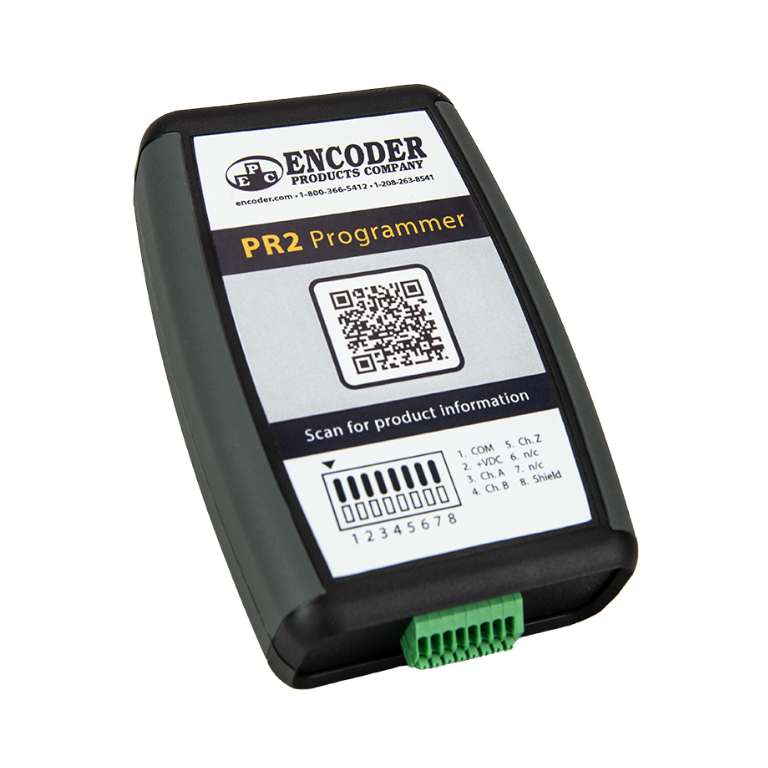

Uses the PR2 programmer and free software download

* High CPR settings may not always yield optimal results
** PR2 Programmer and software sold separately

Configure Model

Configure a 3D model of this encoder with the exact specifications for your application. Then download the files in almost any native format, and design it in to your application.

Configure 3D Model

*** Coming soon for the TRP-Tru-TracPro
