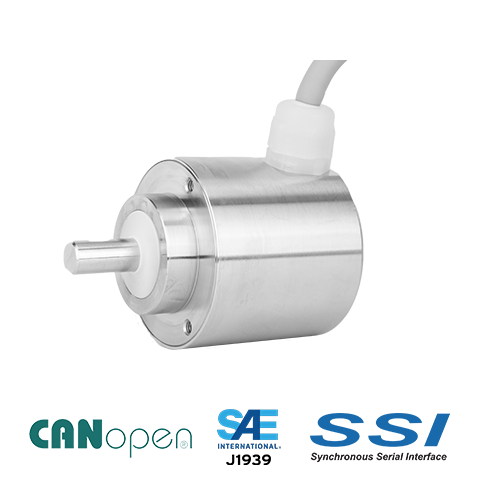

Model A58SBS Stainless Steel Absolute Encoder

  • Single or multi-turn absolute shaft encoder
  • ∅58 mm (2.28")
  • SSI, CANopen®, or SAE J1939 communications

Model A58SBS Features

  • Single turn/multi-turn absolute encoder (16 Bit ST / 43 Bit MT)
  • SSI, CANopen®, or SAE J1939 communications
  • Maintenance-free and environmentally friendly all-magnetic design
  • Energy-harvesting magnetic multi-turn technology
  • No gears or batteries
  • 58 mm (2.28”) diameter shaft encoder
  • Heavy duty IP69K stainless steel housing for acid and alkaline resistance
  • Meets CE/EMC standards for immunity and emissions

download_blueDownload Model A58SBS datasheet

Purchase Options

Purchase Options

Contact us for availability.

Contact us

Model A58SBS Description

The Model A58SBS Absolute Encoder offers a high-performance solution for your absolute feedback needs. It provides maintenance-free feedback thanks to its innovative battery-free and gear-free multi-turn technology. This encoder is especially suited for applications where position information must be retained after loss of system power. Its rugged magnetic technology and high IP69K rating, making the A58SBS an excellent choice, even in tough industrial environments where acidic or alkaline resistance is needed or high pressure washdown is required. Available with a heavy duty 10mm shaft in a clamping flange mount, the Model A58SBS is easily designed into a variety of applications.

Product Drawings
