C-Face Solutions for Motor Feedback

Since the NEMA design standard is applied uniformly by manufacturers, the task of retrofitting existing systems with improved feedback devices is simplified. EPC offers several encoder solutions with C-Face mounting surfaces.

865T_NEMA_motor_1080x720





The advantage of NEMA C-Face surfaces is that they provide a stable, secure and sealed mechanical interface between devices. Since the NEMA design standard is applied uniformly by manufacturers, the task of retrofitting existing systems with improved feedback devices is simplified. EPC offers several encoder solutions with C-Face mounting surfaces.

EPC's C-Face models incorporate a beneficial internal flex mount design that accommodates shaft run-out while maintaining critical alignment of the LED, sensor and code disk.

The disc, shaft collar, and bearing are affixed to a sturdy, yet flexible, disc-shaped membrane. The outer circumference of the membrane is attached to the external housing, which hosts the sensor and electronics. Shaft loads are absorbed by the membrane and are not transferred to the encoder bearings, or electronics, resulting in reliable feedback over the long-haul. For example, as a motor’s bearings begin to wear, shaft run-out and endplay increase.

Eventually, it’s possible for shaft run-out and endplay to be within motor specifications, yet beyond allowable limits for most encoders. The EPC solution minimizes this potential cause of failure. EPC C-face encoders also incorporate our Advanced Opto-ASIC circuitry, which supplies a clean signal with excellent noise immunity.

EPC's C-Face Encoder Options

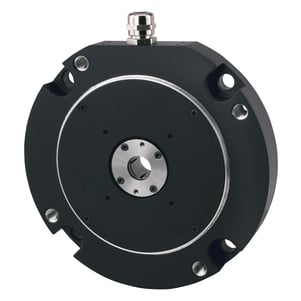

Model 770

The Model 770 C-face mounts on both sides for placement between two devices, such as motor and brake. Ideal for NEMA 56C - 84C frame sizes. Slim 1.0" thick housing. Bores from .0625” through 24 mm. ∅ 6.5". Resolution up to 4,096 CPR.

Model 770 product page

770-gland-nut-main

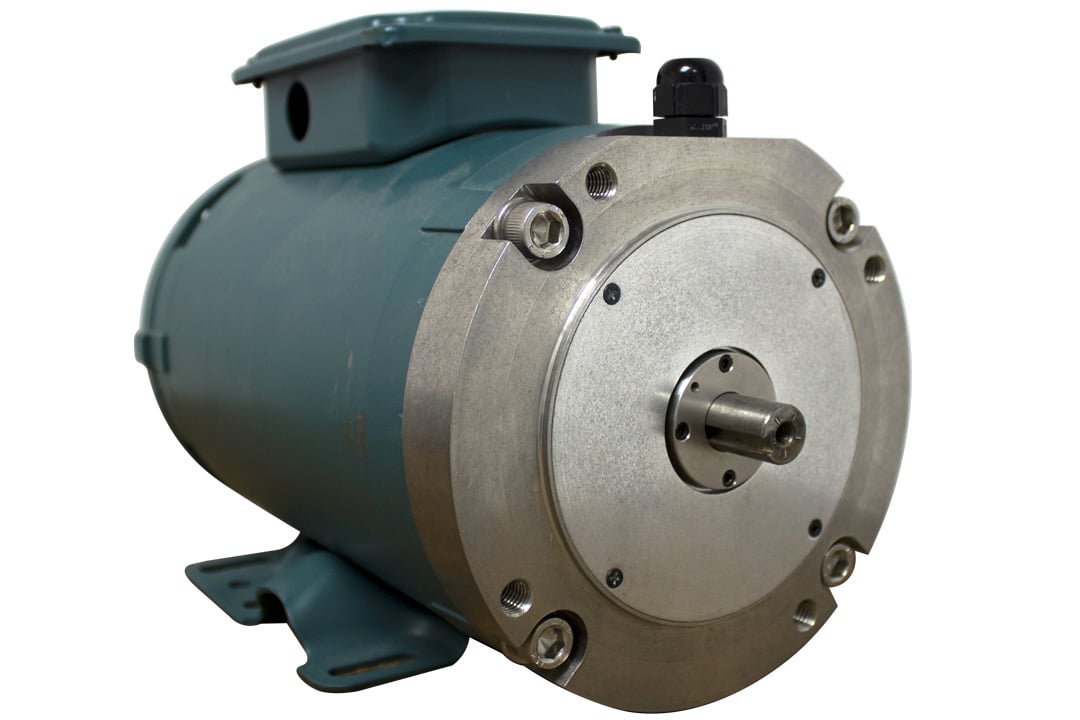

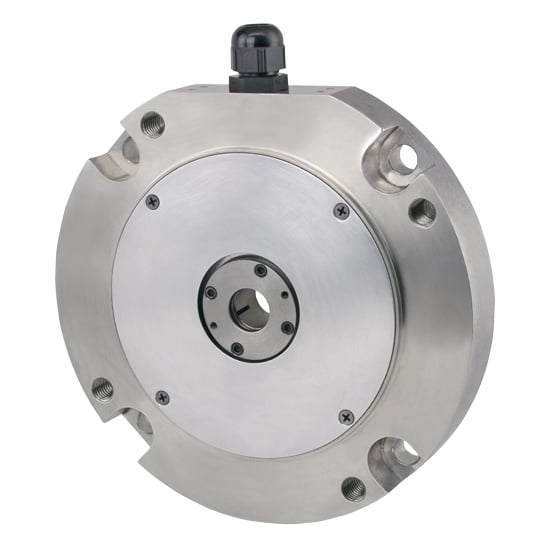

Model 865T Stainless Steel

The Model 865T is the stainless steel version of the Model 770. Ideal for applications in caustic environments. ∅ 6.5".

Model 865T product page

865t_main

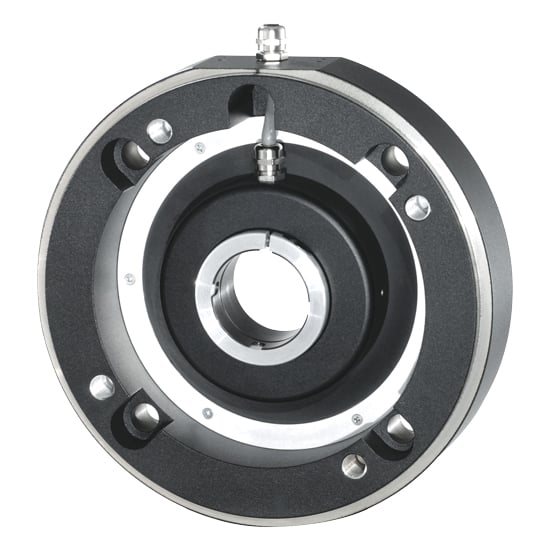

Model 771

The Model 771 C-face mounts on both sides for placement between two devices, such as motor and brake. Fits NEMA 182TC – 256TC frame sizes. Bores from .0625” through 43 mm. ∅ 9.0". Resolution up to 4,096 CPR.

Model 771 product page

771-gland-nut-main

Not sure which encoder is right for your application? Give us a call. When you call EPC, you talk to real engineers and encoder experts who can help you specify the right encoder solution for your application. Contact EPC today. We'll help you find your motor feedback solution.
