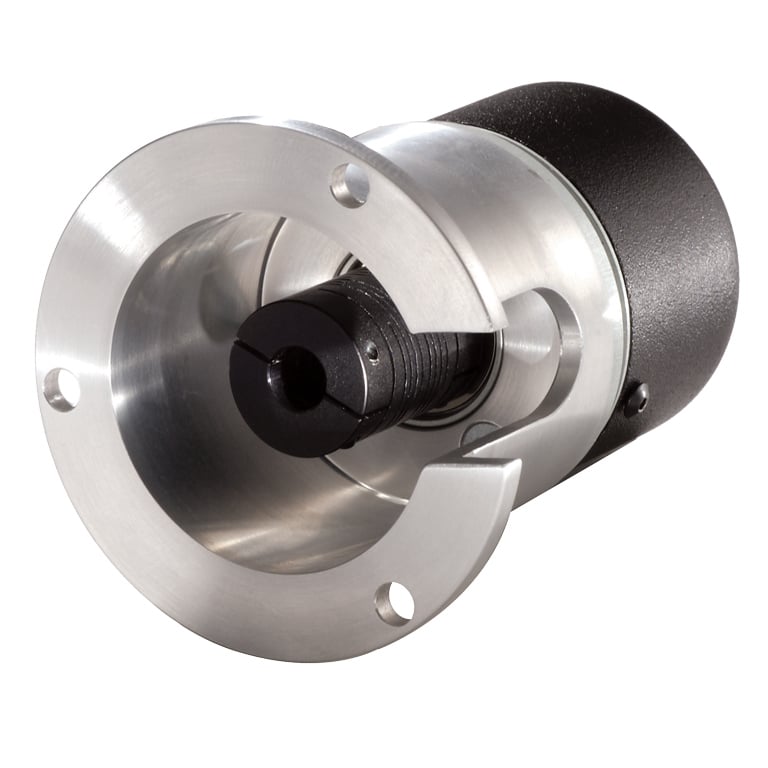

Model 755a Accu-Coder motorMount-size23 NEMA mount

Model 755A NEMA Size 23

3 x 120° 1.862" (50 mm) bolt circle
1.400" inside diameter
2.100" outside diameter

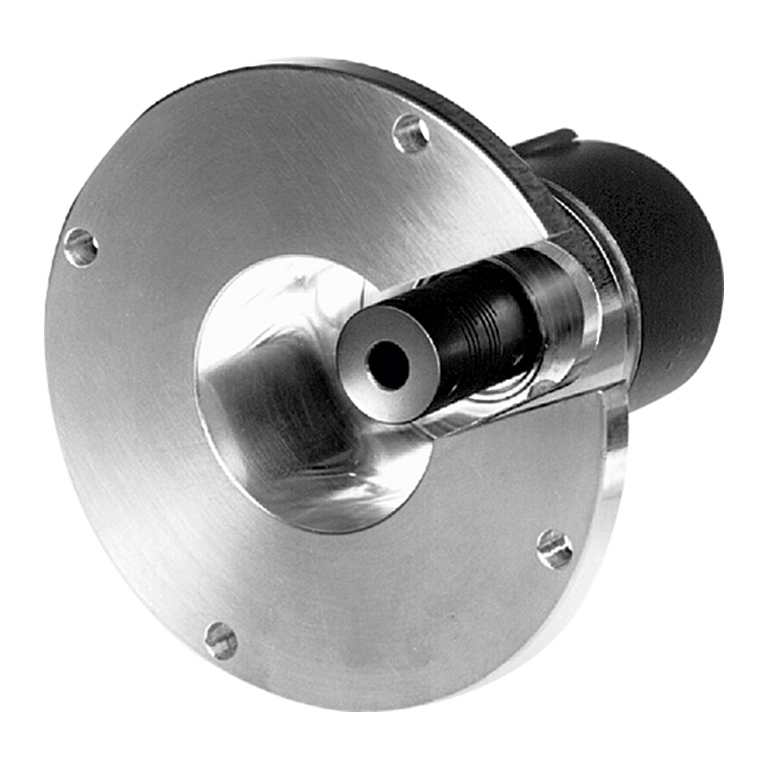

Model 755a Accu-Coder motorMount-size34 NEMA mount

Model 755A NEMA Size 34

4 x 90° 2.952" (70 mm) bolt circle
1.374" inside diameter
3.250" outside diameter

Model 755A NEMA Description

With its integral shaft coupling, the Model 755A Motor Mount Accu-Coder® mounts directly onto NEMA motors. It is designed for easy installation on industrial Size 23 or 34 motor frames. It features standard bolt circle patterns, and can accommodate shaft sizes of 0.250", 0.375", or 6 mm. With its rugged, all-metal housing and a wide range of CPR options, it will fit in many different applications, providing years of trouble-free use.
