Model 30M Encoder Module | Electronic Interface Modules for Encoders

Model 30M Features

Compact 30 mm incremental magnetic encoder module
Large air gap and tolerance to misalignment
Resolutions from 1 to 1024 CPR (4096 PPR with quadrature counting)
Optional 2 to 32 pole commutation
Temperature range -40° to 120° C
Easy alignment and installation
Sealing to IP69K

download_blue Download Model 30M datasheet

Configure Model

Configure a 3D model of this encoder with the exact specifications for your application. Then download the files in almost any native format, and design it in to your application.

Configure 3D Model

Purchase Options

Buy through a distributor

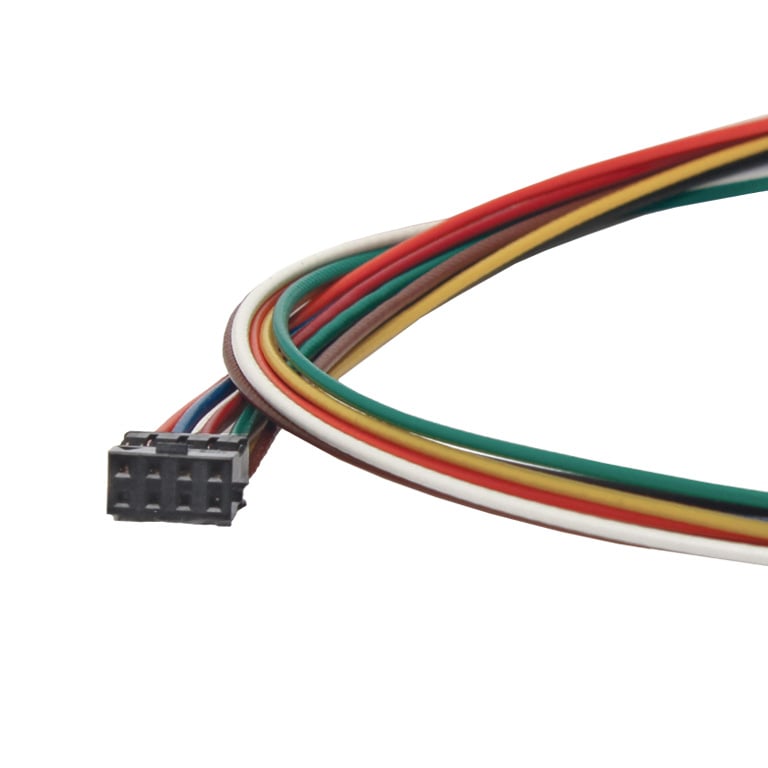

Model 30M Accu-Coder module 8-pin header (C)

Model 30M 8-Pin Header (C)

1.181" (30 mm) diameter
2 x 180° 1.000" (25.4 mm) bolt circle

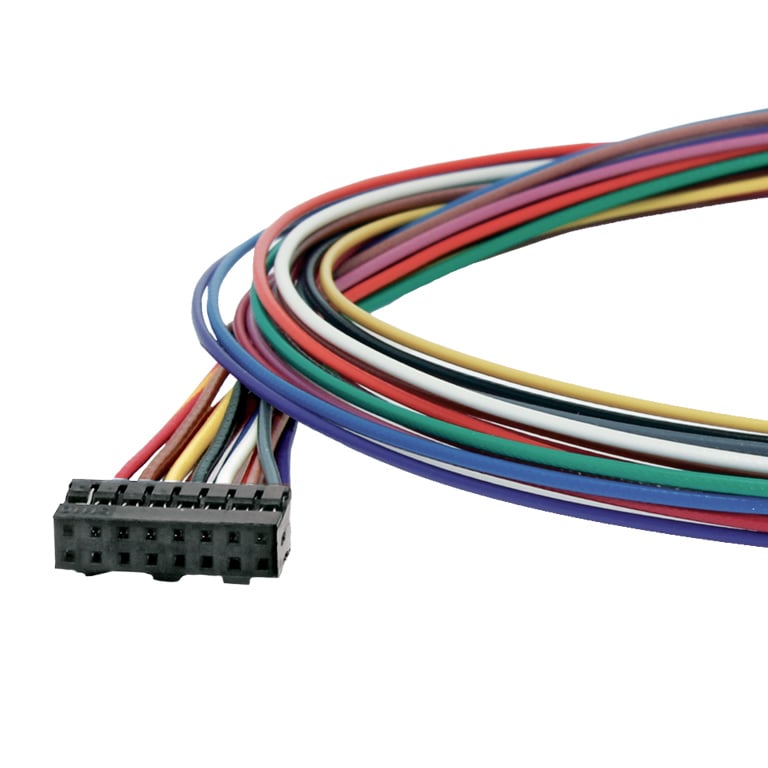

Model 30M 16-Pin Header (V)

1.181" (30 mm) diameter
2 x 180° 1.000" (25.4 mm) bolt circle

Model 30M Accu-Coder module 8-pin M12 (K)

Model 30M 8-Pin M12 (K)

1.181" (30 mm) diameter
2 x 180° 1.000" (25.4 mm) bolt circle

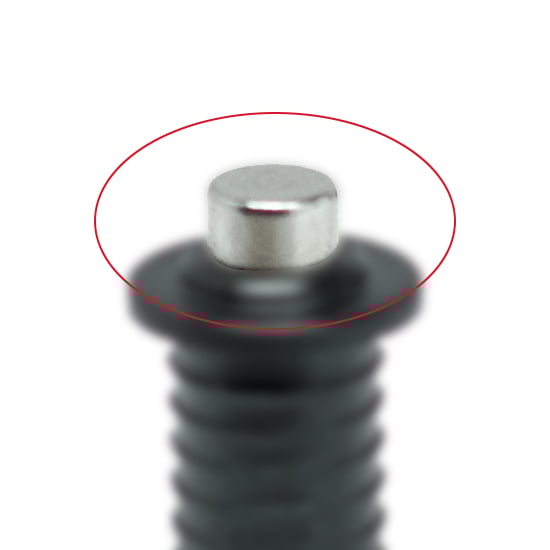

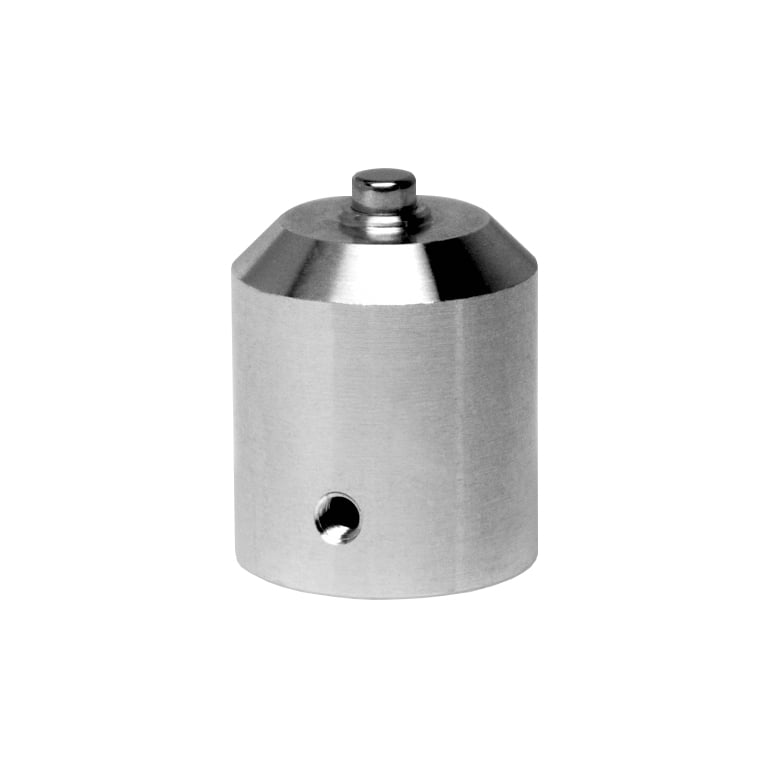

Model 30M Description

The Model 30M Accu-Coder© is a compact, incremental encoder module with advanced magnetic sensing and signal processing technology. Featuring resolutions from 1 to 1024 CPR, commutation channels, several output types, and two supply voltage options, it can be configured for a wide range of industrial, commercial and consumer feedback applications. With a non-contact magnetic sensor and optional sealing up to IP69K, the Model 30M can be applied in environments where dirt, dust, and liquids are present.
