Economical 2.25 Inch Thru Bore Encoder

Model 225A/Q Features

Single channel & quadrature models
Easy to mount economical thru-bore design
Metal construction
Bore sizes to 0.875" or 22 mm

download_blue Download Model 225A/Q datasheet

Purchase Options

Model 225 Single Channel (A) / Quadrature (Q)

Model 225 Tether Arm Kit (F)

Mounts in up or down position
0.735" to 1.675" radius mounting without connector
0.86" to 1.80" radius mounting with connector

Model 225A/Q Accu-Coder with tether arm kit (F), down

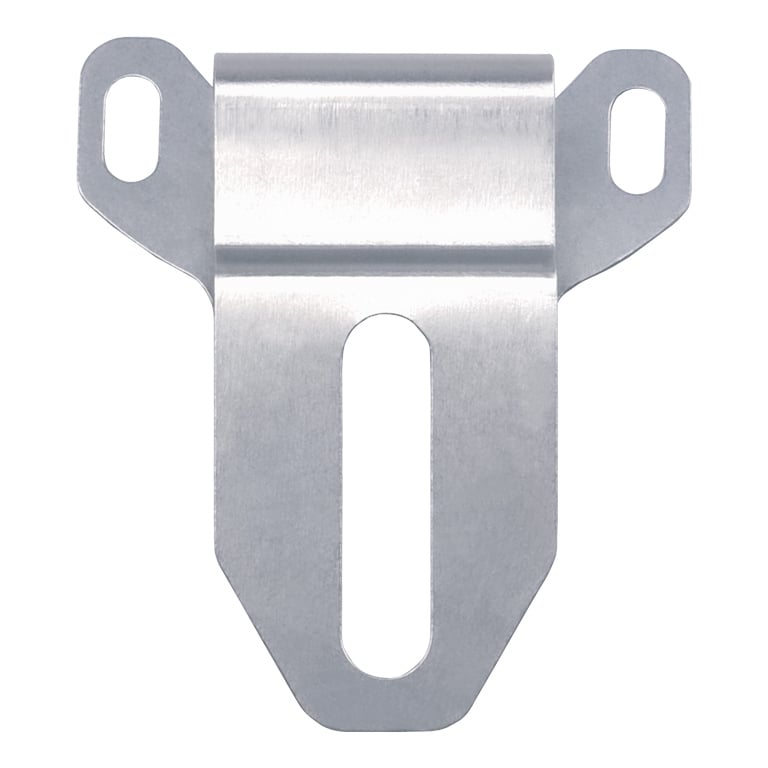

Model 225 Tether Arm Kit (F)

Mounts in up or down position
0.735" to 1.675" radius mounting without connector
0.86" to 1.80" radius mounting with connector

Model 225A/Q Description

For tachometer feedback, or motor speed control applications, the Model 225 Accu-Coder® is the ideal encoder choice. The Model 225 Accu-Coder® is a thru-bore encoder available in both single channel (225A) and quadrature (225Q) models that provides a cost-effective solution for simple measurement. Features including an all-metal housing, a variety of connector options, and easy installation due to the thru-bore design, make the Model 225 Accu-Coder® ideal for many motion control and manufacturing applications.
