Encoder Mating Connectors | Encoder Cordsets, Cables & Connectors

Mating Connector Features

Your EPC encoder is designed to produce a clean, stable and reliable signal in a variety of operating conditions. To ensure that your encoder signal reaches its intended destination, use Accu-Coder® mating connectors. Our mating connectors have been tested to meet stringent standards for quality and performance.

These are connectors only. Find EPC Connector-Cable Assemblies or M12 cordsets here.

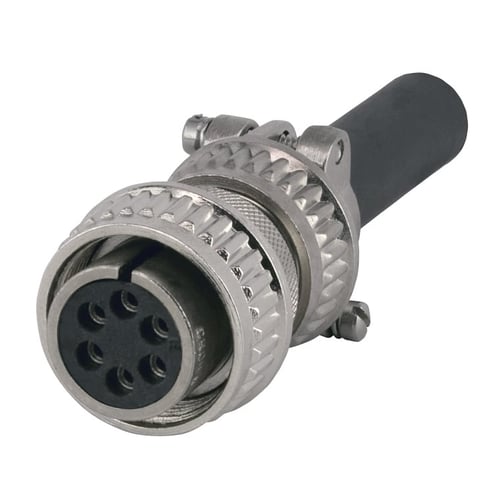

6-pin-MS_mating-cordset_stock-080014

Mating Connector Specifications

Image	Stock #	Manf. part #	Connector type	Encoder models	CE Compatible	Available online
	080014	MS 3106A14S-6S-619	6-pin MS type	Models 25T/H, 25SF, 25SP, 58T/H, 58TP, 702, 711, 715, 716, 725, 758, 775, 776, LCE, TR3	No	n/a
	080174	MS 3106A16S-618	7-pin MS type	Models 25T/H, 25SF, 25SP, 58T/H, 58TP, 702, 711, 715, 716, 725, 758, 775, 776, LCE, TR3	No	n/a
	080113	MS 3106A18-618	10-pin MS type	Models 25T/H, 25SF, 25SP, 58T/H, 58TP, 702, 716, 725, 758, 775, 776, LCE, TR3	No	n/a
	080533	MS 3108E 14S-6S	6-pin 90°	Models 25T/H, 25SF, 25SP, 58T/H, 58TP, 702, 711, 715, 716, 725, 758, 775, 776, LCE, TR3	No	n/a
	080534	MS 3108E-16S-1S	7-pin 90°	Models 25T/H, 25SF, 25SP, 58T/H, 58TP, 702, 711, 715, 716, 725, 758, 775, 776, LCE, TR3	No	n/a
	080535	MS 3108E 18-1S	10-pin 90°	Models 25T/H, 25SF, 25SP,58T/H, 58TP, 702, 711, 715, 716, 725, 758, 775, 776, LCE, TR3	No	n/a
	080325-01	AIM 40-9709S	9-pin D-sub	Models 225, 25T/H, 25SF, 25SP, 58T/H, 702, 725, 775, 776	No	n/a
	080359		12-pin M23 connector	Models 58T/H, 758	No	Shop online
	080365		16-pin connector	Model 925	No	n/a
	080364	KPT 06F14-19S	16-pin connector	Model 925	Yes	n/a
	080376-01		10-pin industrial clamp	Models 770 NEMA, 771 NEMA	No	n/a
	080021		10-pin bayonet	Models 260, 25T/H, 58T/H, 702	No	n/a
