Encoder Kits for Large Motors

EPC's Motor Kits and Direct Motor Replacement (DMR) Kits are designed to make motor feedback simple. By bundling all the components together, these kits save you time.

Motor Kits include a preconfigured Model 25T encoder with SG flex mount, mating connector, 56C protective cover, and installation hardware.

DMR Kits include a preconfigured Model 25T encoder, SG and SJ flex mounts, bore size and connector type options, bore inserts, and installation hardware. Jump to DMR Kits.

EPC's Direct Motor Replacement Kits

Motor Kits

Designed for Baldor, Reliance, Marathon, and other common motor brands. Motor kits are ideal for field replacements or for installation on new “encoder ready” motors.

Motor Kits include:

  • Model 25T Accu-Coder® encoder
  • 5-28 VDC input
  • A/B/Z line driver outputs
  • -20° to 105° C temperature
  • CPR 1024 - 4096
  • IP66 sealing
  • 10-pin MS style or bayonet connector & mating connector
  • Bore size 5/8" or 1"
  • SG flex mount (5.90")
  • 56C protective cover
  • Installation hardware

25th-sg-motor-kit-10-pin-MS_550x367

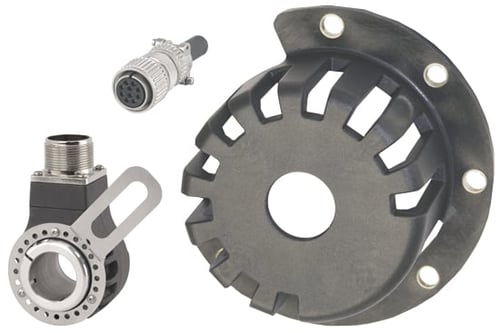

Motor Kit with 10-pin MS connector option

Motor Kit Ordering Guide

Stock # Bore size CPR Connector type
MK-56C-25T-001 5/8" 1024 10-pin MS style
MK-56C-25T-002 5/8" 2048 10-pin MS style
MK-56C-25T-003 5/8" 4096 10-pin MS style
MK-56C-25T-004 1" 1024 10-pin MS style
MK-56C-25T-005 1" 2048 10-pin MS style
MK-56C-25T-006 1" 4096 10-pin MS style
MK-56C-25T-051 5/8" 1024 10-pin bayonet
MK-56C-25T-052 5/8" 2048 10-pin bayonet
MK-56C-25T-053 5/8" 4096 10-pin bayonet
MK-56C-25T-054 1" 1024 10-pin bayonet
MK-56C-25T-055 1" 2048 10-pin bayonet
MK-56C-25T-056 1" 4096 10-pin bayonet

Direct Motor Replacements (DMR)



Direct Motor Replacement (DMR) encoders and DMR Universal Kits are drop-in ready configurations and components for the most widely used industrial vector duty induction motors.

DMR Kits include:

  • Model 25T Accu-Coder® encoder
  • 5-28 VDC input
  • A/B/Z line driver
  • -20° to 105° C temperature
  • CPR 1024 - 4096
  • IP66 sealing
  • A variety of connector options
  • Bore size 5/8" or 1"
  • SJ or SG flex mounts (Universal Kits include both flex mounts)
  • Bore inserts (included in Universal Kits)
  • Installation hardware

25T-DMR-bayonet-with-kit_550x367

DMR Kit with bayonet connector

DMR Kit Ordering Guide

Stock # Bore size CPR Connector type Flex mount & bolt circle
DMR-01-1024 5/8" 1024 Body mount 10-pin MS style SG mount 3.50" to 5.90" BC
DMR-01-2048 5/8" 2048 Body mount 10-pin MS style SG mount 3.50" to 5.90" BC
DMR-02-1024 1" 1024 Body mount 10-pin MS style SJ mount 3.50" to 8.10" BC
DMR-02-2048 1" 2048 Body mount 10-pin MS style SJ mount 3.50" to 8.10" BC
DMR-03-1024 5/8" 1024 Body mount 10-pin bayonet SG mount 3.50" to 5.90" BC
DMR-03-2048 5/8" 2048 Body mount 10-pin bayonet SG mount 3.50" to 5.90" BC
DMR-04-1024 1" 1024 Body mount 10-pin bayonet SJ mount 3.50" to 8.10" BC
DMR-04-2048 1" 2048 Body mount 10-pin bayonet SJ mount 3.50" to 8.10" BC
DMR-05-1024 5/8" 1024 18" flying lead cable SG mount 3.50" to 5.90" BC
DMR-05-2048 5/8" 2048 18" flying lead cable SG mount 3.50" to 5.90" BC
DMR-06-1024 1" 1024 24" flying lead cable SJ mount 3.50" to 8.10" BC
DMR-06-2048 1" 2048 24" flying lead cable SJ mount 3.50" to 8.10" BC
DMR-07-1024 5/8" 1024 18" cable with 10-pin bayonet SG mount 3.50" to 5.90" BC
DMR-07-2048 5/8" 2048 18" cable with 10-pin bayonet SG mount 3.50" to 5.90" BC
DMR-08-1024 1" 1024 24" cable with 10-pin bayonet SJ mount 3.50" to 8.10" BC
DMR-08-2048 1" 2048 24" cable with 10-pin bayonet SJ mount 3.50" to 8.10" BC
DMR-98-1024
DMR Universal Kit		 5/8" and 1" bore inserts 1024 Body mount 10-pin MS style

SG and SJ flex mounts

Includes wrenches, screws
DMR-98-1024
DMR Universal Kit		 5/8" and 1" bore inserts 1024 Body mount 10-pin bayonet

SG and SJ flex mounts

Includes wrenches, screws
