Encoder Bulk Cable

Your EPC encoder is designed to produce a clean, stable and reliable signal in a variety of operating conditions. To ensure that your encoder signal reaches its intended destination – be it a counter, PLC, or controller – use genuine Accu-Coder® cables and connectors.

Our shielded cable and mating connectors have been tested to meet stringent standards for quality and performance. All cable assemblies are assembled in our in-house cable department in accordance with industry best practices.

CABLE-8-pin-M12_075101

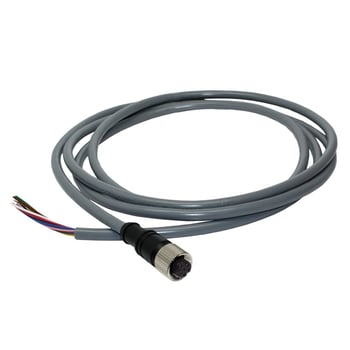

A cable with an 8-pin M12 connector

Bulk Cable Specifications

Available by the foot or by the meter.

Stock # Cable Type Description
070148 Standard cable

9 conductors, tinned copper, 24 AWG

Foil and braided shield, PVC jacket, nominal OD 0.240"

Temp rating to 105° C

Bend radius 2.5"
070144 Standard cable, for commutated units

15 conductors, tinned copper, 28 AWG

Foil and braided shield, PVC jacket, nominal OD 0.250"

Temp rating to 105° C

Bend radius 2.5"
070244 Twisted pair cable

5 conductor pairs, tinned copper, 24 AWG

Foil and braided shield, PVC jacket, nominal OD 0.425"

Temp rating to 75° C

Bend radius 4.5"
070063 High temperature cable, high flex

9 conductors, tinned copper, 24 AWG

Foil and braided shield, TPE jacket, nominal OD 0.250"

Temp rating to 120° C

Bend radius 2"
070264 Cable for parallel absolute encoders

25 conductors, tinned copper, 30 AWG

Foil and braided shield, PVC jacket, nominal OD 0.248"

Temp rating to 80° C

Bend radius 1.5"
